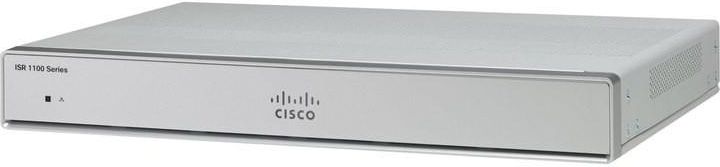

Router Cisco C1111X-8P - IEEE 802.1Q,IEEE 802.1ag - Gigabit Ethernet - 10/100/1000Base-T(X) - 10,100,1000 Mbit/s - 2.4 - 5 GHz - 3.2 Ge (C1111X8P)

Data sheet : Cisco C1111X-8P - IEEE 802.1Q,IEEE 802.1ag - Gigabit Ethernet - 10/100/1000Base-T(X) - 10,100,1000 Mbit/s - 2.4 - 5 GHz - 3.2 Gen 1 (3.1 Gen 1)

Cisco C1111X-8P - IEEE 802.1Q,IEEE 802.1ag - Gigabit Ethernet - 10/100/1000Base-T(X) - 10,100,1000 Mbit/s - 2.4 - 5 GHz - 3.2 Gen 1 (3.1 Gen 1)
1x GE/SFP - 1 G.FAST (Annex A) - 8x RJ-45 - 4x PoE - 2x PoE+ - USB 3.0 - QoS - DRAM: 4 GB - Flash: 4 GB - 802.11ac - 1.94kg
Group Network Equipment
Manufacturer Cisco
Manufacturer item no. C1111X-8P
EAN/UPC 0889728146975

Marketing

Cisco® 1100 Series Integrated Services Routers (ISRs) with Cisco IOS® XE Software combine Internet access, comprehensive security, and wireless services (LTE Advanced 3.0 wireless WAN and 802.11ac wireless LAN) in a single, high-performance device. The routers are easy to deploy and manage, with cutting-edge, scalable, multicore separate data and control plane capabilities.The Cisco 1100 Series ISRs are well suited for deployment as Customer Premises Equipment (CPE) in enterprise branch offices, in service provider managed environments as well as smaller form factor and M2M use cases.Note: Not all 1100 series SKU variants are available in every region with different technologies (check on CCW pricelist for your region).

Extended details
Allgemein
Data link protocols HDLC
Routing protocols VRRP
Switching protocols RFC 2338
Networking standards IEEE 802.1Q,IEEE 802.1ag
Ethernet interface type Gigabit Ethernet
Cabling technology 10/100/1000Base-T(X)
USB version 3.2 Gen 1 (3.1 Gen 1)
Security algorithms 3DES,128-bit AES,256-bit AES,DES
Authentication method RSA (748/1024/2048 bit), ECDSA (256/384 bit); Integrity: MD5, SHA, SHA-256, SHA-384, SHA512
Internal memory type DRAM
Internal memory 4000 MB
Flash memory 4000 MB

Extended details
Protocols
Supported network protocols ACL, NAT, QoS, BFD, VRF Lite, IP SLA
DHCP server Y
Data link protocols HDLC
Management protocols IGMPv3
IPv4 & IPv6 features Dual stack IPv4/IPv6
DHCP client Y
Routing protocols VRRP
Supported protocols IPv4, IPv6, RIP, RIPv2, OSPF, EIGRP, BGP, IS-IS, IGMPv3, PIM SM, SSM, RSVP, ERSPAN, IPSLA, EEM, IKE, ACL, EVC, DHCP, FR, DNS, LISP, HSRP, RADIUS, AAA, AVC, DVMRP, MPLS, IPsec, L2TPv3, BFD
Switching protocols RFC 2338
Networking
Networking standards IEEE 802.1Q,IEEE 802.1ag
Frequency range 2.4 - 5 GHz
Multicast support Y
Ethernet LAN Y
VLAN support Y
Ethernet interface type Gigabit Ethernet
Cabling technology 10/100/1000Base-T(X)
Port forwarding Y
Static route Y
Ethernet LAN data rates 10,100,1000 Mbit/s
WAN connection
SIM card slot N
DSL WAN N
3G/4G USB modem compatibility Y
Ethernet WAN Y
Ports & interfaces
USB ports quantity 1
USB version 3.2 Gen 1 (3.1 Gen 1)
Installed SFP modules quantity 4
Power over Ethernet (PoE) ports quantity 6
Fast Ethernet (copper) ports quantity 1
Ethernet LAN (RJ-45) ports 8
Gigabit Ethernet (copper) ports quantity 8
Security
Security algorithms 3DES,128-bit AES,256-bit AES,DES
Firewall Y
Access Control List (ACL) Y
Authentication method RSA (748/1024/2048 bit), ECDSA (256/384 bit); Integrity: MD5, SHA, SHA-256, SHA-384, SHA512
Network address translation (NAT) Y
Mobile networking
Short Message Service (SMS) Y
4G Y
3G N
Management features
Web-based management Y
Quality of Service (QoS) support Y
Design
Product colour Grey
LED indicators Link,Status
Wall mountable Y
Weight & dimensions
Weight 1.94 kg
Depth 244 mm
Height 44 mm
Width 323 mm
Features
Internal memory type DRAM
Certification UL 60950-1.and EN 60950-1. CAN/CSA C22.2 No. 60950-1. CB to IEC 60950-1, 2
Internal memory 4000 MB
Flash memory 4000 MB
Operational conditions
Storage relative humidity (H-H) 5 - 95 %
Storage temperature (T-T) -4 - 149 °C
Non-operating altitude 0 - 4570 m
Operating temperature (T-T) 32 - 104 °C
Operating relative humidity (H-H) 10 - 85 %
Operating altitude 0 - 3000 m
DSL features
ADSL Y
ADSL2 Y
Power
AC input frequency 50 - 60 Hz
Power over Ethernet (PoE) Y
AC input voltage 100 - 240 V
Power consumption (typical) 66 W
Output voltage 12 V
Power source type AC,PoE
Antenna
Detachable antenna(s) Y
Antenna type External
Antennas quantity 2
Packaging data
Quick start guide Y
Package type Box
Manual Y
AC adapter included Y
