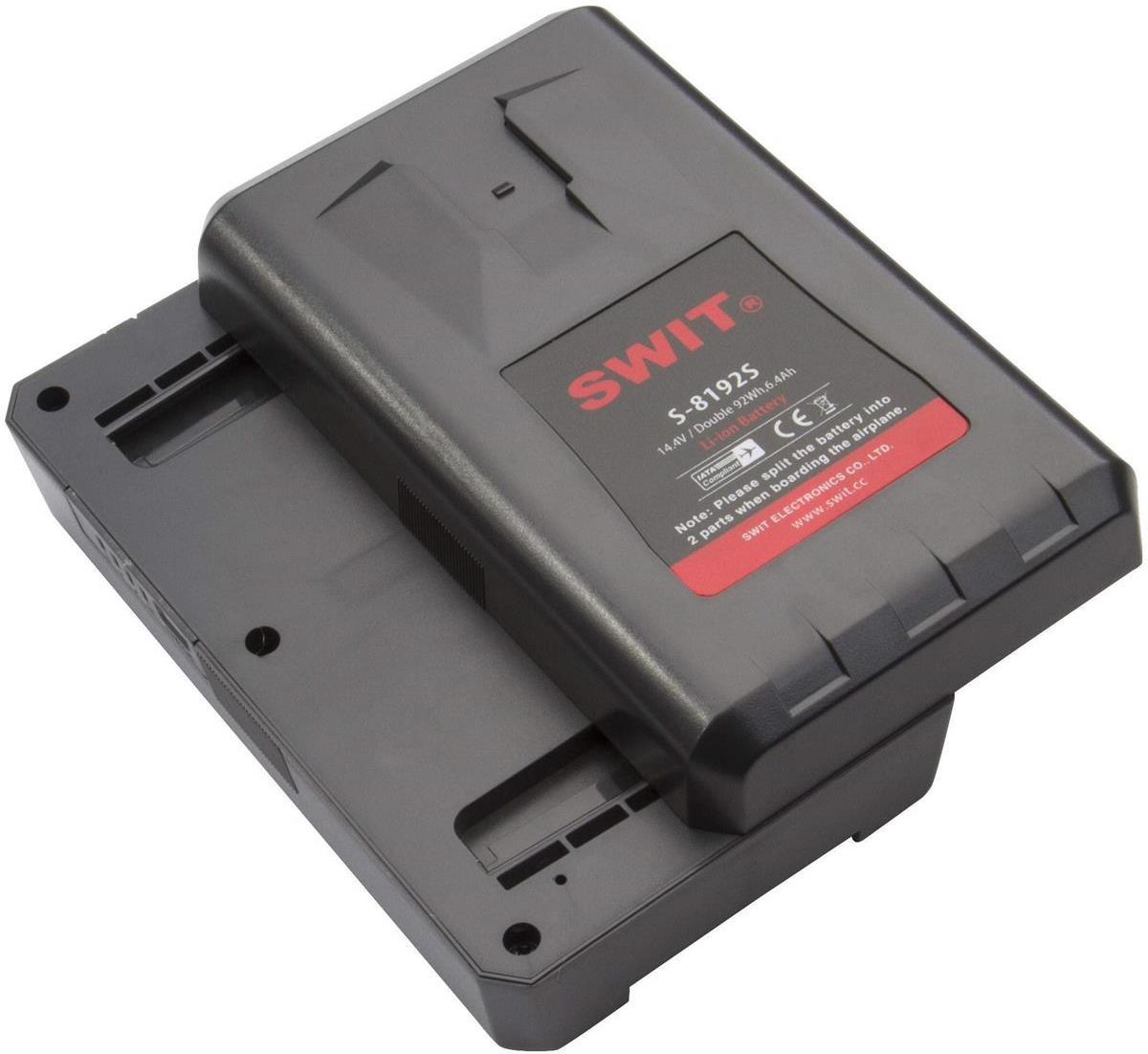

SWIT S-8192A

2 x 92Wh / 184 Wh / Li-Ion
akumulator dzielony do transportu lotniczego, składa się z 2 części o pojemności 92 Wh każda,
wbudowane gniazdo lampy kamerowej, pracuje tylko z ładowarkami SWIT

Large Capacity Battery, Complied with IATA

Patented dividable battery design

The IATA DGR regulations restricted the air transportation of over 100Wh Li-ion battery packs:

Battery Capacity Carry-on Baggage Air Cargo Shipping
Under 100Wh OK OK
100Wh-160Wh Only 2pcs allowed Not allowed
Over 160Wh Not allowed Not allowed

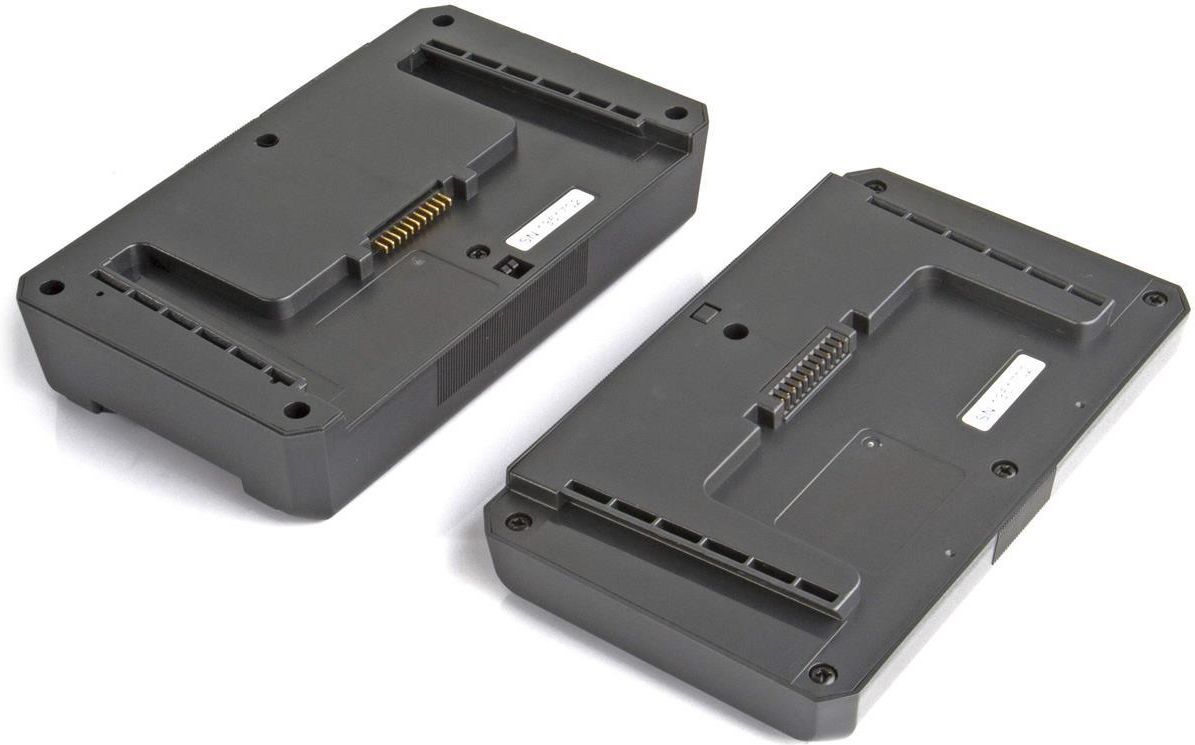

Since the large capacity batteries are quite necessary, SWIT provides the solution of Dividable Battery to comply with IATA regulations. S-8192S can be divided into 2 parts, and each part contains 92Wh capacity, not restricted by air transportation. And when using S-8192S, just assemble the 2 parts, you can get a Li-ion battery pack of 184Wh large capacity.

184Wh / 12.8Ah High Capacity

When assembled, the S-8192S consists of 20pcs 18650 battery
cells, and reaches 184Wh / 12.8Ah high capacity.S-8192S
can run approx 6 hours for normal 30W ENG cameras, and has no problem to fly with.

Reliable V-mount Connection

S-8192S is the standard SONY V-mount connection and we adopt the high quality metal V-wedge that ensures the reliable mounting.

Build-in D-tap DC Output Socket

A D-tap DC output socket is equipped on the top side of S-8192S
battery, for DC14.4V (Nominate) connection, such as on-camera
lights, monitors, wireless transmitter, etc. The Max Power from D-tap
is 100W, 8A

4-level LED Power Indicator

On the side of the battery, there’re 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.

Napięcie : 14.4V
Pojemność : 184Wh
Maksymalna moc na wyjściu : 100W
Maksymalne natężenie na wyjściu : 8A
Waga : 1.2kg
Wymiary : 168×101×65mm
