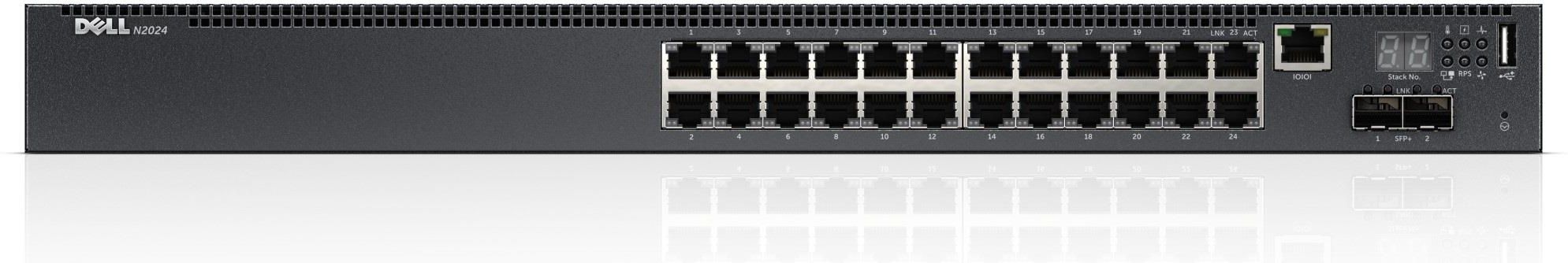

Dell Networking N2000 PoE+ 24x 1GbE + 2x 10GbE SFP+ fixed ports (DNN2024P)

Rack Mounting Kit

Compliant Standards FCC Class A certified, cUL, GS, RoHS, WEEE, REACH, ICES Class A, VCCI Class A, EAC, CCC Class A

Power

Installed Qty 1
Power Provided 1000 Watt
Power Consumption Operational 42.9 Watt
Features Redundant Power System (RPS) connector
Power Device Internal power supply

Environmental Parameters

Min Operating Temperature 32 °F
Humidity Range Storage 0 - 85%
Max Operating Temperature 113 °F
Humidity Range Operating 0 - 95%
Max Storage Temperature 149 °F
Min Storage Temperature -40 °F

Dimensions & Weight

Width 17.3 in
Height 1.7 in
Depth 15.2 in
Weight 14.04 lbs

General

Flash Memory 256 MB
Subtype Gigabit Ethernet
RAM 1 GB
Authentication Method Secure Shell (SSH), RADIUS, TACACS+
Encryption Algorithm MD5, AES, SSL, TLS
Enclosure Type Rack-mountable 1U
Power Over Ethernet (PoE) PoE+
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, TFTP
Device Type Switch - 24 ports - L2+ - managed - stackable
Ports 24 x 10/100/1000 + 2 x 10 Gigabit SFP+
MAC Address Table Size 8192 entries
Routing Protocol RIP-1, RIP-2, IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing
Performance Switching fabric bandwidth: 172 Gbps ¦ Forwarding performance: 128 Mpps ¦ Stacking bandwidth: 84 Gbps
Capacity Virtual interfaces (VLANs): 4096 ¦ ARP entries: 1024 ¦ NDP entries: 400 ¦ Priority queues per port: 8 ¦ IPv4 routes (static): 256 ¦ IPv6 routes (static): 128 ¦ IPv4 routes (dynamic): 256 ¦ VLAN routing interfaces: 256 ¦ ACL: 100 ¦ Max ACL rules system-wide: 2048 ¦ Maximum rules per ACL: 1023 ¦ Maximum ACL rules per interface (IPv4) ingress rules: 1024 ¦ Maximum ACL rules per interface (IPv4) egress rules: 512 ¦ Maximum ACL rules per interface (IPv6) ingress rules: 512 ¦ Maximum ACL rules per interface (IPv6) egress rules: 256 ¦ Maximum VLAN interfaces with ACLs applied: 24 ¦ Maximum aggregation groups: 128 ¦ Maximum dynamic ports per switch stack: 144 ¦ Maximum member ports per LAG: 8
Compliant Standards IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3az
Features Flow control, auto-negotiation, ARP support, VLAN support, port mirroring, DiffServ support, Broadcast Storm Control, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Access Control List (ACL) support, Quality of Service (QoS), front to back airflow, Per-VLAN Spanning Tree Plus (PVST+), IPv4 support, LLDP support, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, Management Information Base (MIB), Dynamic VLAN Support (GVRP), dual firmware images, Neighbor Discovery Protocol (NDP), redundant fans, Protocol-based VLANs support, Multi Chassis Link Aggregation Group (MLAG)

Manufacturer Warranty

Service & Support Limited warranty - lifetime

Expansion / Connectivity

Interfaces 24 x Gigabit LAN RJ-45 PoE+ - 30.8 W ¦ 2 x 10Gbit LAN SFP+ ¦ 1 x serial (RS-232) RJ-45 management ¦ 1 x USB Type A ¦ 2 x network stack device
