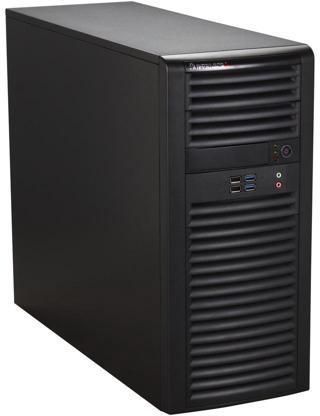

Supermicro CSE-732D4-865B

Poniżej prezentujemy szczegółowy opis techniczny oferowanego produktu:

Product SKUs

CSE-732D4-865B

• SuperChassis 732D4-865B

Form Factor

Mid-tower chassis support for max. motherboard size - 12" x 13" E-ATX, 12" x 10" ATX and 9.6" x 9.6" Micro-ATX

Processor Support

Dual, single Intel® / AMD processors

Dimensions

Height

• 16.7" (424 mm)

Width

• 7.6" (193 mm)

Depth

• 20.68" (525 mm)

Net Weight

• 28 lbs (12.7 kg)

Gross Weight

• 30 lbs (13.61 kg)

Packaging (W x H x L)

• 21.38" (543 mm) x 11.97" (304 mm) x 25.28" (642 mm)

Available Color

• Black

Expansion Slots

• 7 full-height & full-length expansion slot(s)

Drive Bays

• 4 x 3.5" fixed drive bay
• Optional 4 x 2.5" fixed drive bay

Peripheral Drives

• 2 x standard 5.25" drive bay
• 1 x 3.5" internal fixed drive bay

Front Panel

Buttons

• Power On/Off button

LEDs

• 1 Network Activity LEDs
• HDD activity LED
• Power LED
• System Overheat LED

Ports

• 2x USB 3.0 Port(s)
• 2x USB 2.0 Port(s)
• 2x HD/AC97 Audio port(s)

Motherboard (for CSE- 732D4-865B)

X9SCV-Q X10SLQ
X10SL7-F X10SLM+-LN4F
X10SLM+-F X10SLH-F
X10SLM-F X10SLL-F
X10SLL-S X10SLL-SF
X10SLA-F X10SLL+-F
X10SAE C7Z87-OCE
X10SAT X10SLQ-L
X11SSQ X11SAE
X11SAE-F X11SAT
X11SAT-F C7Z170-OCE
C7Z170-SQ X11SSQ-L

Systems Cooling

Fans

• 1 x 12cm rear exhaust fan(s)
• Optional 1 x 12cm (front) cooling fan

Operating Environment (System)

Operating Temperature Range

• 5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range

• -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range

• 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range

• 5% - 95% (non-condensing)

Power Supply
PS2/ATX 865W Multi-Output Power Supply with redundant cooling fan and SMBus
Power Efficiency

• 88%

Total Output Power and Input

• 865W with Input 100 - 240Vac

AC Input Frequency

• 50-60Hz

Dimensions (L x W x H)

• 185 x 150 x 86 mm

Output Type

• 24pin ATX

-12V

• Max: 1A / Min: 0A

+12V

• Max: 70A / Min: 1A (100Vac - 240Vac)

+5V

• Max: 30A / Min: 0.3A

+3.3V

• Max: 30A / Min: 0.3A

+5Vsb

• Max: 6.5A / Min: 0A

Certification

• Certified

Regulatory (Power Supply)

Power Supply Safety / EMC

• BSMI
• CCC
• CE/EMC
• FCC class B
• TUV/CB
• UL/CUL
