‌CKMOVA Vocal X V3 MK2

A Kit That Expands Your Capabilities

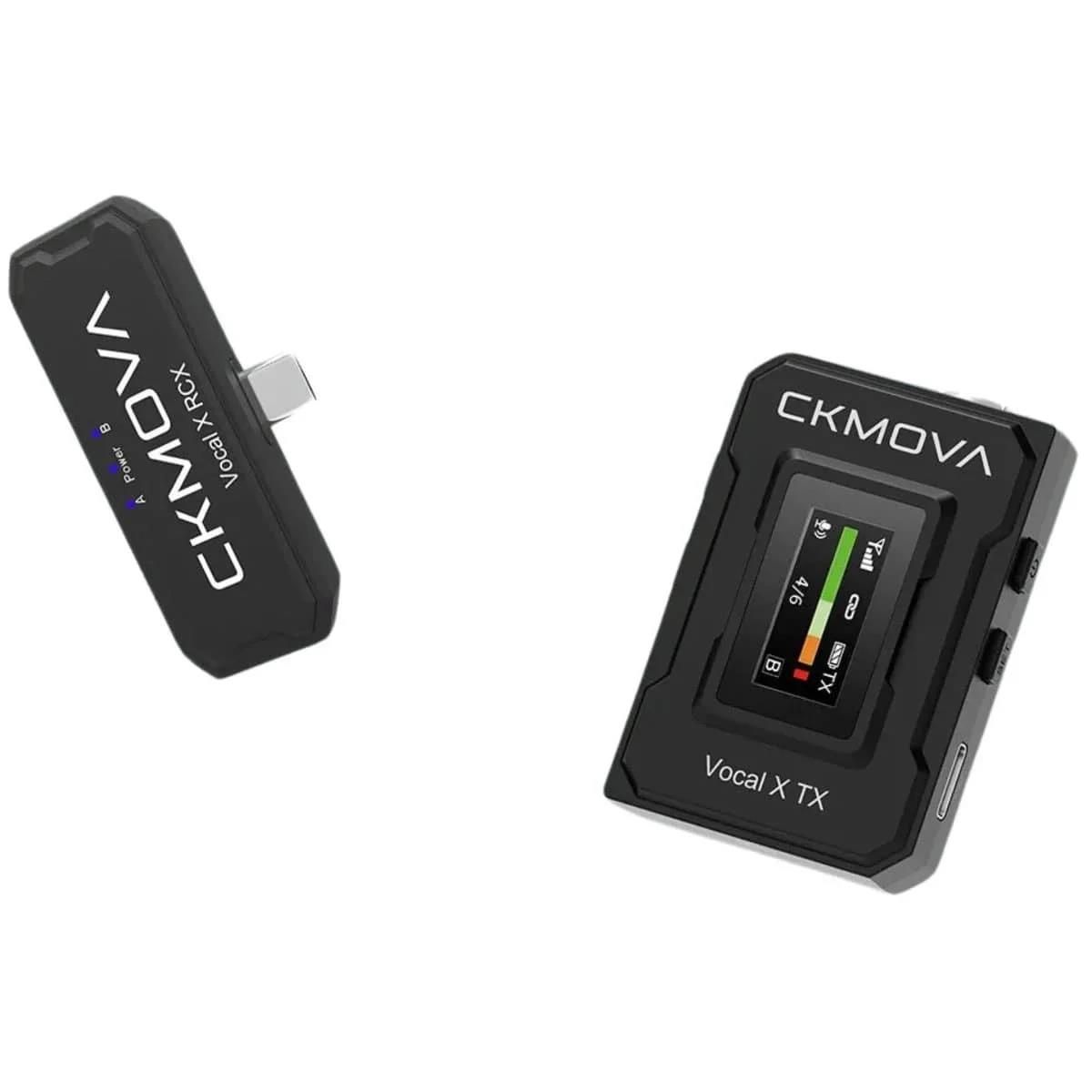

The CKMOVA Vocal X is a digital microphone system designed for flexibility and convenience in various conditions. It includes a transmitter and receiver, supports 2.4 GHz transmission with low latency below 5 ms, and offers high-quality sound with a 20Hz-20kHz frequency range. It is equipped with both an internal and external microphone, which can be easily switched to adapt to external environments. Additionally, its durable battery provides up to 12 hours of operation, and a convenient headphone monitor allows for real-time sound control. The product is also equipped with a windscreen, making it user-friendly for outdoor use, especially on windy days.

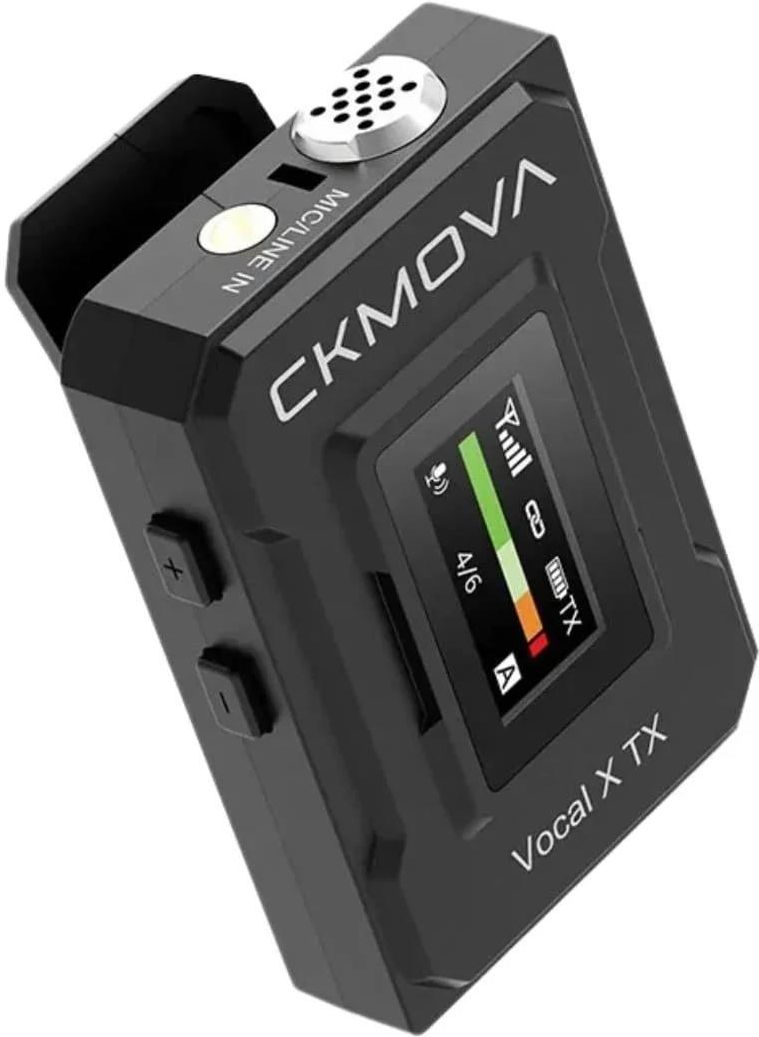

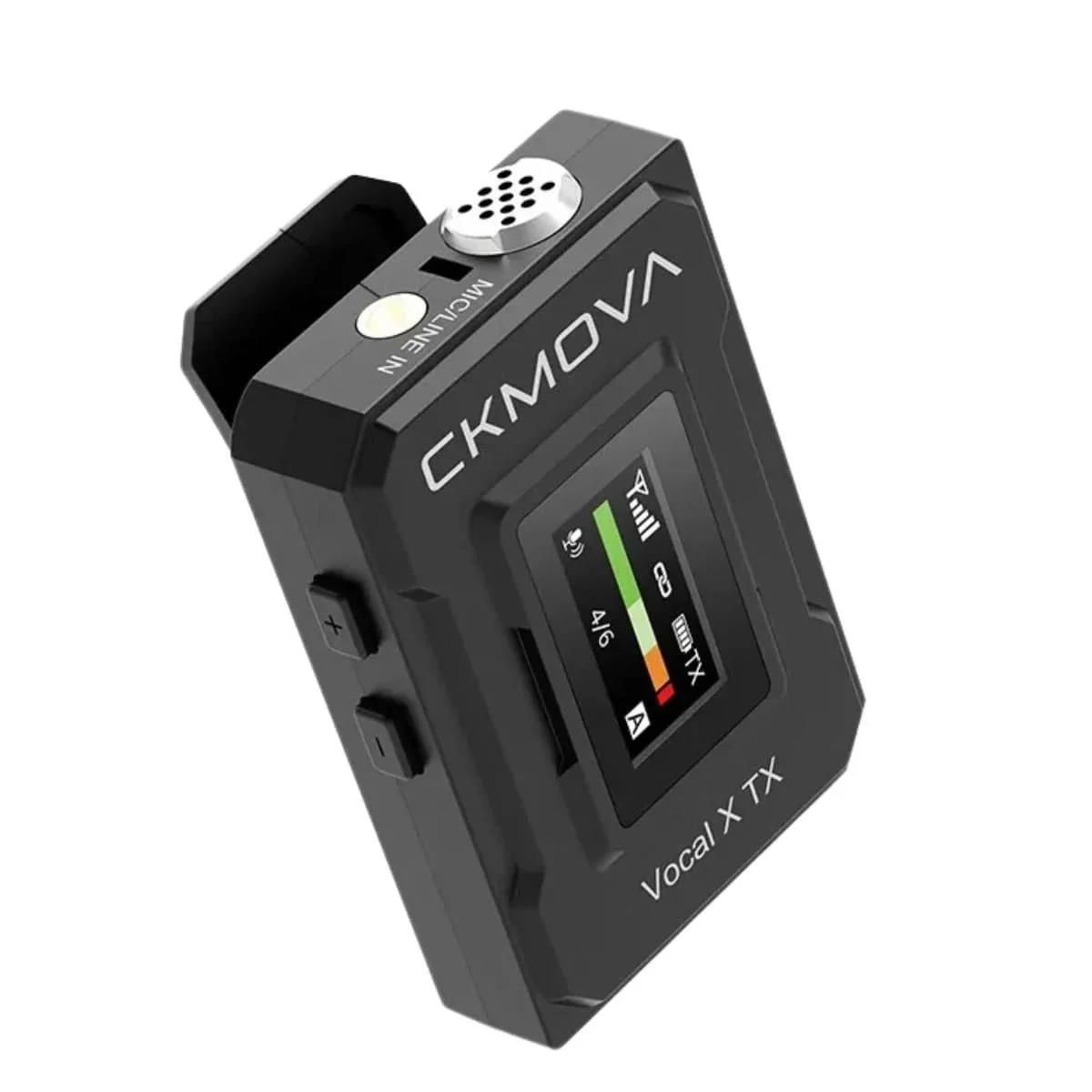

Color OLED Display on the TransmitterVocal X V3 MK2 features a color OLED display for easy navigation! With it, you can easily read the necessary information in any lighting conditions.

Displays show various information such as signal level, power, volume level, facilitating reading and monitoring of device work status.

Up to 12 Hours of Transmitter Battery LifeThe TX transmitter is characterized by a long battery life, which can last up to 12 hours. The device is at your disposal for half a day!

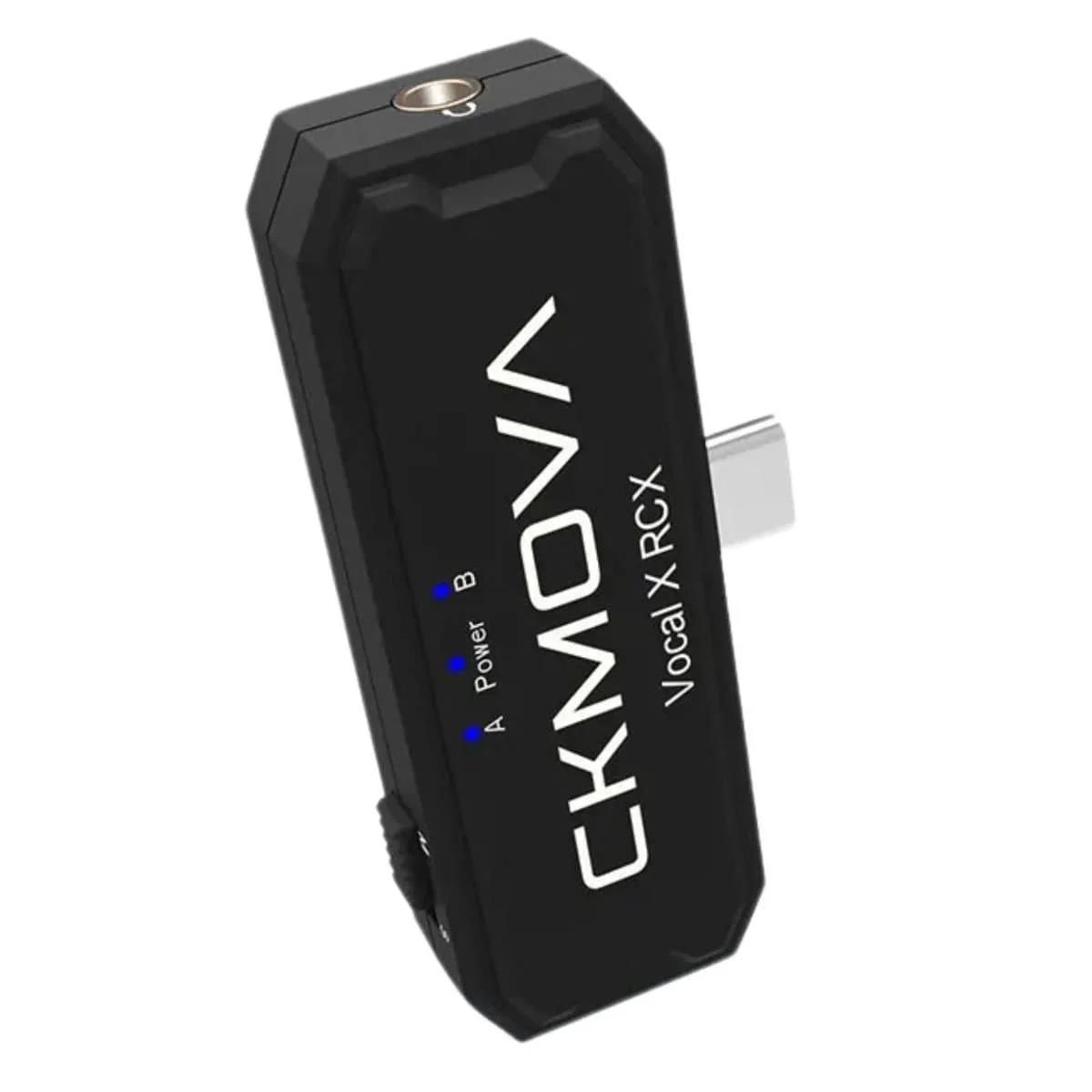

USB-C ReceiverThe receiver is equipped with a USB-C for direct connection to devices with a USB-C port. Use it with an iPhone 15 or other smartphone with USB-C.

Low Latency, Wide Range, Working in Tough ConditionsThe kit features stable wireless transmission with latency below 5 milliseconds and a range of up to 150 meters. The device is optimized to work stably in dense RF (Radio Frequency) environments.

Quick and Easy ConnectionA pairing button on the transmitter and receiver facilitates a quick and simple pairing process.

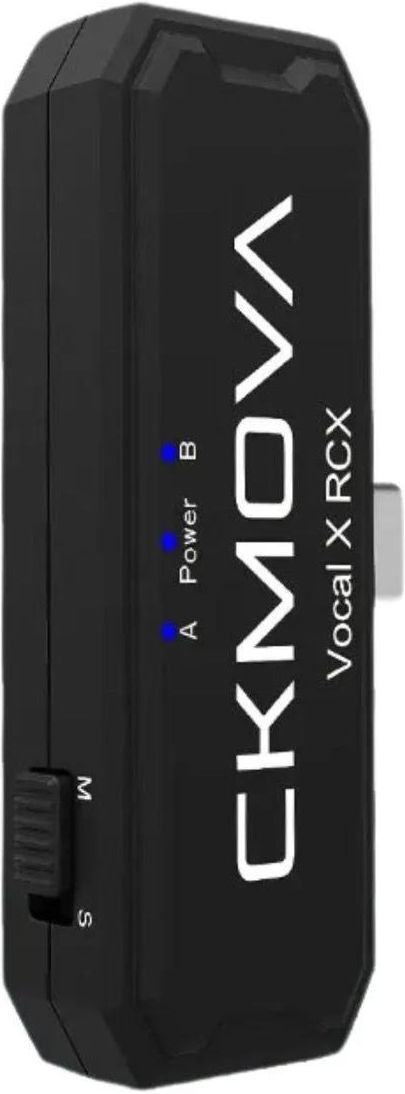

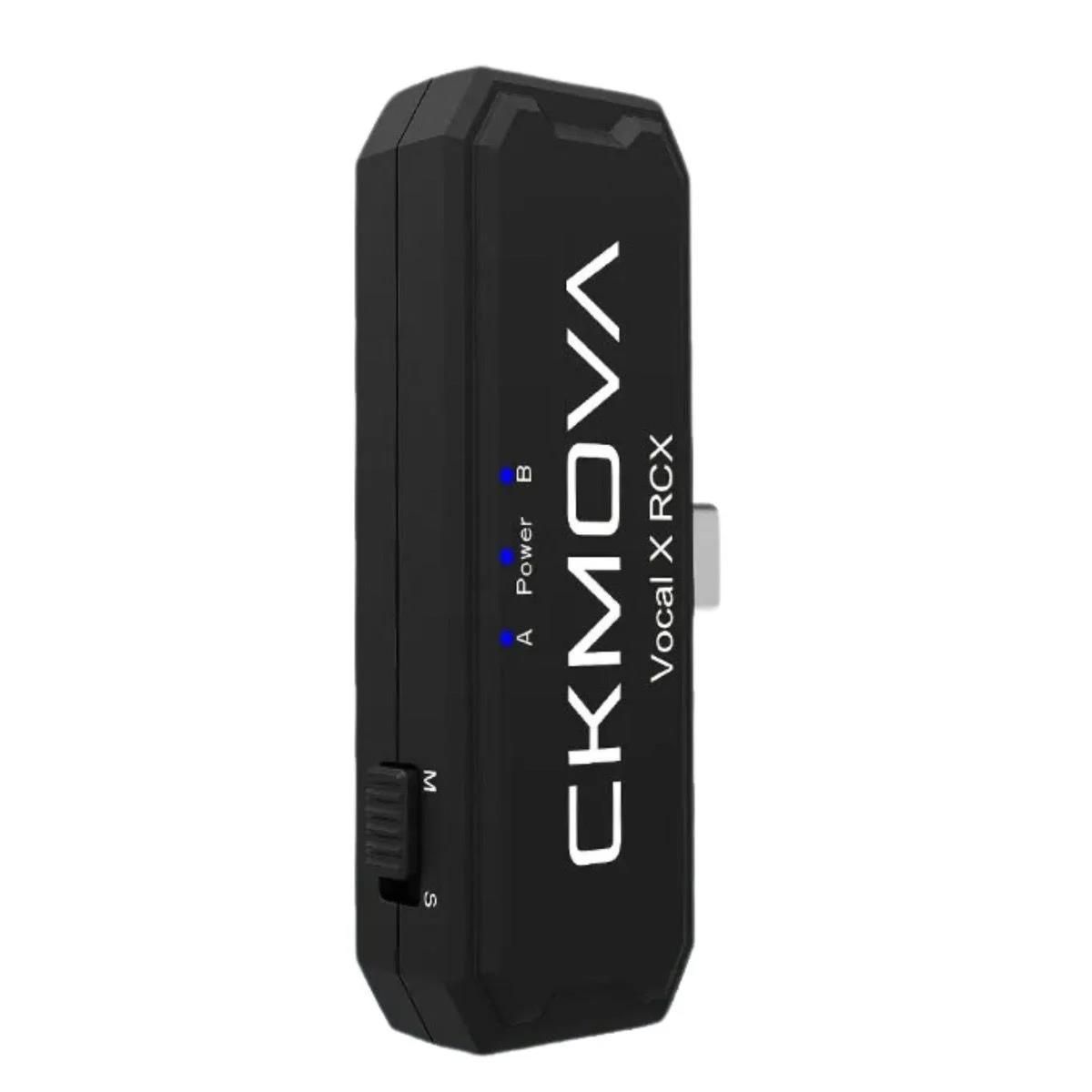

Mono or Stereo OutputVocal X V3 MK2 is equipped with a function to switch between mono and stereo modes, allowing separate or combined recording of each channel, providing flexibility in post-production.

3.5mm Jack for Real-Time MonitoringCKMOVA Vocal X V3 MK2 allows for real-time sound monitoring with 3.5mm headphones, ensuring that the microphone records sound clearly and operates correctly.

MIC IN / LINE IN ModeSwitch between microphone input and line input to adapt the device for different situations.

Various Low Cut Filter SettingsChoose from OFF, 40HZ, 80HZ, or 120Hz settings to adapt to the sound source.

Bass & Treble ControlVocal X V3 MK2 features a function to switch recording modes for bass and treble. Bass mode aims to strengthen the bass for a richer, more magnetic sound. Treble mode aims to enhance the treble for a brighter and more expressive sound.

Internal & External Mic ModeTwo microphone recording methods offer users extensive options.

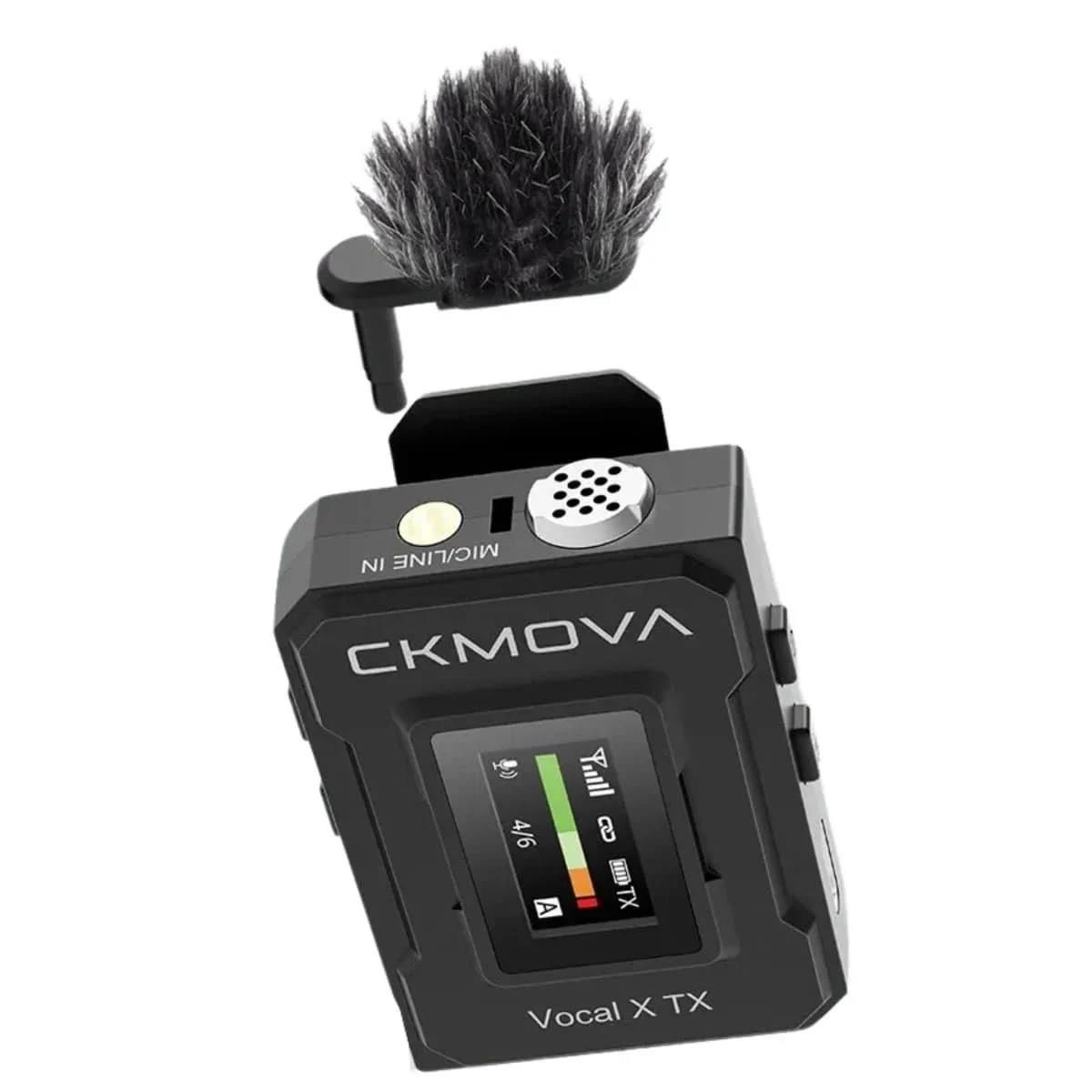

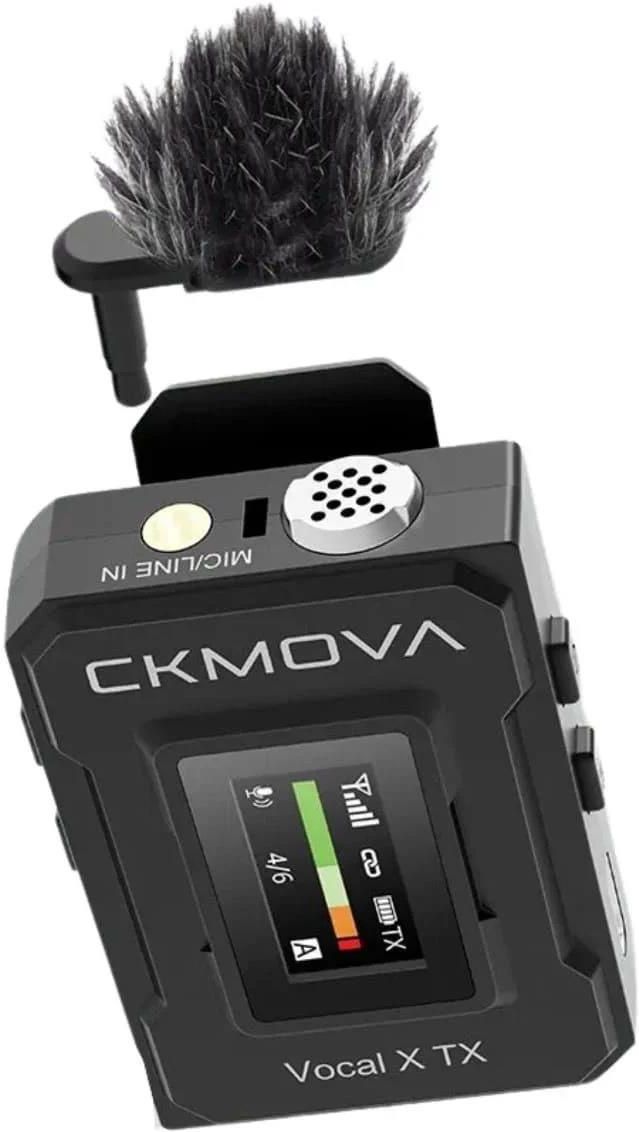

Ability to Work Outdoors, Even in Windy EnvironmentsThe set includes a windscreen for the built-in microphone, which is resistant to loosening. It allows the CKMOVA Vocal X V3 MK2 set to be used outdoors,

even in windy conditions.

Volume Control and Muting in the TransmitterVocal X V3 MK2 features two-way muting and volume control, allowing for flexible and complete control of the entire microphone system with separate muting and volume adjustment functions on both the transmitter and receiver.

Technical Specification:

• Transmission Type: Digital 2.4 GHz

• Modulation: GFSK

• Frequency Range: 20Hz-20kHz

• Operational Range: 150m

• Latency:
• THD: ≤ 0.5%

• Sampling/Resolution: 48kHz/24-bit

• Audio Input: 3.5mm TRS female for microphone and line input or internal microphone

• RF Output Power: 10mW

• Microphone Polar Pattern: Omnidirectional

• Sensitivity: -41±1dB (0dB=1V/Pa,1kHz)

• SNR: 100dB SPL

• Power Requirements: Built-in Li-ion battery

• Approximate Battery Life: 12 hours

• Internal Battery Capacity: 600mAh

• Battery Charging Time: 3 hours

• Operating Temperature: 0°C to 50°C

• Dimensions: 563817mm (TX)

• Weight: 30g (TX)


Package Contents:

• Vocal X TX Transmitter x1

• Vocal X RCX Receiver x1

• Windscreen FW-6 x1

• Type-C Charging Cables x1

• Storage Bag x1

• User Manual x1
