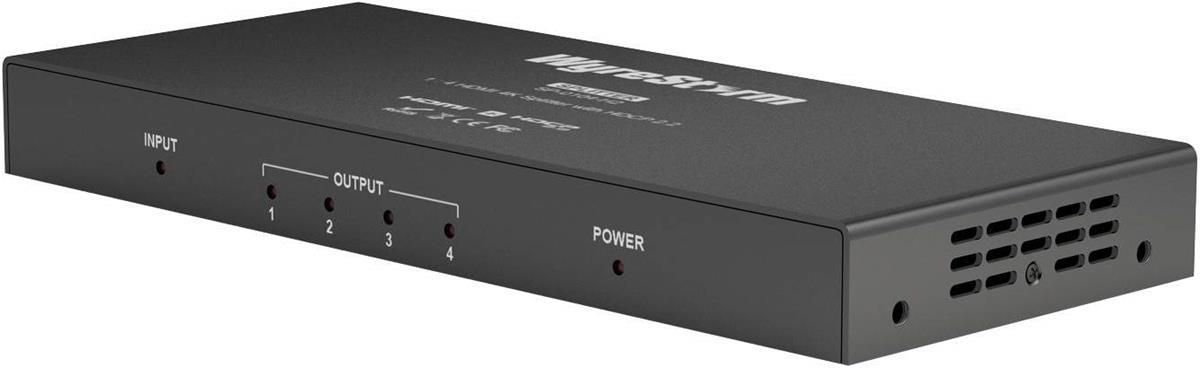

Wyrestorm SP-0104-H2 - Opis i dane produktu
With support for 4K/HDR resolutions, HDCP 2.2, and HD multi-channel audio formats, this four-output splitter allows for simple, reliable distribution of a single HDMI source to multiple duplicate displays. Additionally, the compact chassis makes it perfect for environments where unobtrusive installation is important.
4K UHD, 4-ways
With support for 4K/60 4:4:4 and a powerful backplane capable of “fully-loaded” 18Gbps distribution to four outputs, the SP-0104-H2 is the perfect way to achieve multi-point, single source distribution.
HDCP2.2 Compliance
The latest 4K UHD content arriving via satellite, cable, disc or stream is all heavily encrypted to protect it from being illegally duplicated.
Being part of the H2 product family, the SP-0104-H2 supports the multi-point distribution of this content over HDBaseT™.
EDID adjustment
With multiple EDID tables to choose from, the SP-0104-H2 comes with various EDID options to optimise sink-source communication. Built-in EDID’s allow a defined timing signal to be selected or copy mode from port #1 means that a connected screen can be used as the master.
Slim form-factor
Coming complete with mounting brackets, the SP-0104-H2 can be both wall & surface mounted. The 18mm chassis allows for unobtrusive installation.
Features
Splits a single HDMI 4K/HDR or 1080p HD device to four 4K/HDR or HD display devices
Supports resolutions up to 4K@60Hz, including 3840x2160 (HDR) and 4096x2160 (DCI) and 1920x1080p@60Hz
HDCP 2.2 supported
Color depth 24bit (4K) and 36bit (1080p) full 4K chroma subsampling color palette 4:4:4
3D compatible (up to 1080p)
DVI support up to 1920x1200
Multichannel Dolby and DTS HD audio supported up to 7.1 (mirrors source)
Extensive EDID management for improved compatibility and communication between connected source and display devices

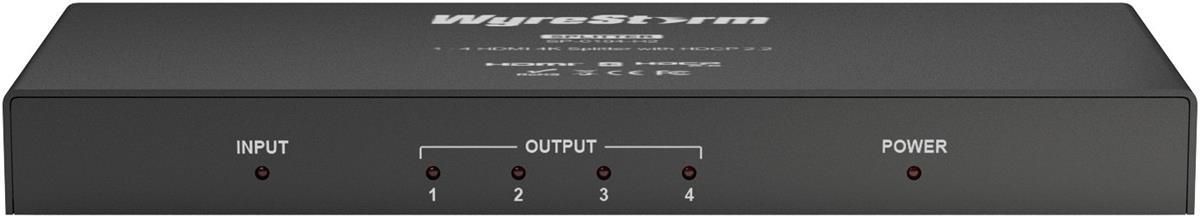

Front panel LED indication for visual confirmation of I/O and power connectivity
Locking DC 12v power port
3-pin Phoenix connector for firmware updates
Transmission distance up to 10m/33ft (4K/1080p input, 4K output), 15m/49ft (1080p output) using standard high speed HDMI cables
Ultra-slim 18mm chassis design for space-saving local installation, surface mountable
Units cascadable to create larger systems
12v DC 1A power supply and mounting brackets included
Specifications
AUDIO AND VIDEO
Version 1
Inputs 1x HDMI 19-pin type A
Outputs 4x HDMI 19-pin type A
Audio Formats 2ch PCM | Up to DTS-X and Dolby Atmos
Video Resolutions (Max)
1920x1080p @60Hz 12bit (15m/49.2ft) | 16bit (15m/49.2ft)
3840x2160p @30Hz 4:4:4 8bit (15m/49.2ft)
4096x2160p @60Hz 8bit 4:2:0 (15m/49.2ft)
Color Depth 1080p: 48bit | 4K UHD: 24bit
Maximum Pixel Clock 340mHz
Communication and Control
HDMI HDMI 1.4 | HDCP 1.4 | Configurable EDID DVI/D supported with adapter (not included)
RS-232 1x RS-232 3-pin Phoenix Connector (Firmware Updates)
Power
Power Supply Input: 100~240V AC 50/60Hz | Output: 12V DC 2A
Max Power Consumption 4W
Environmental
Operating Temperature 32°F ~ 113°F (0°C ~ 45°C)
10% ~ 90%, non-condensing
Storage Temperature -4°F to ~ 158°F (-20°C ~ +70°C)
10% ~ 90%, non-condensing
Maximum BTU 13.64 BTU/hr
Dimensions & Weight
Rack Units/Wall Box <1U
Height 18mm/0.71in
Width 167.2mm/6.59in
Depth 69.7mm/2.75in
Weight 0.32kg/0.7lbs
Regulatory
Safety and Emission CE | FCC
4K UHD, 4-ways
With support for 4K/60 4:4:4 and a powerful backplane capable of “fully-loaded” 18Gbps distribution to four outputs, the SP-0104-H2 is the perfect way to achieve multi-point, single source distribution.
HDCP2.2 Compliance
The latest 4K UHD content arriving via satellite, cable, disc or stream is all heavily encrypted to protect it from being illegally duplicated.
Being part of the H2 product family, the SP-0104-H2 supports the multi-point distribution of this content over HDBaseT™.
EDID adjustment
With multiple EDID tables to choose from, the SP-0104-H2 comes with various EDID options to optimise sink-source communication. Built-in EDID’s allow a defined timing signal to be selected or copy mode from port #1 means that a connected screen can be used as the master.
Slim form-factor
Coming complete with mounting brackets, the SP-0104-H2 can be both wall & surface mounted. The 18mm chassis allows for unobtrusive installation.
Features
Splits a single HDMI 4K/HDR or 1080p HD device to four 4K/HDR or HD display devices
Supports resolutions up to 4K@60Hz, including 3840x2160 (HDR) and 4096x2160 (DCI) and 1920x1080p@60Hz
HDCP 2.2 supported
Color depth 24bit (4K) and 36bit (1080p) full 4K chroma subsampling color palette 4:4:4
3D compatible (up to 1080p)
DVI support up to 1920x1200
Multichannel Dolby and DTS HD audio supported up to 7.1 (mirrors source)
Extensive EDID management for improved compatibility and communication between connected source and display devices
Front panel LED indication for visual confirmation of I/O and power connectivity
Locking DC 12v power port
3-pin Phoenix connector for firmware updates
Transmission distance up to 10m/33ft (4K/1080p input, 4K output), 15m/49ft (1080p output) using standard high speed HDMI cables
Ultra-slim 18mm chassis design for space-saving local installation, surface mountable
Units cascadable to create larger systems
12v DC 1A power supply and mounting brackets included
Specifications
AUDIO AND VIDEO
Version 1
Inputs 1x HDMI 19-pin type A
Outputs 4x HDMI 19-pin type A
Audio Formats 2ch PCM | Up to DTS-X and Dolby Atmos
Video Resolutions (Max)
1920x1080p @60Hz 12bit (15m/49.2ft) | 16bit (15m/49.2ft)
3840x2160p @30Hz 4:4:4 8bit (15m/49.2ft)
4096x2160p @60Hz 8bit 4:2:0 (15m/49.2ft)
Color Depth 1080p: 48bit | 4K UHD: 24bit
Maximum Pixel Clock 340mHz
Communication and Control
HDMI HDMI 1.4 | HDCP 1.4 | Configurable EDID DVI/D supported with adapter (not included)
RS-232 1x RS-232 3-pin Phoenix Connector (Firmware Updates)
Power
Power Supply Input: 100~240V AC 50/60Hz | Output: 12V DC 2A
Max Power Consumption 4W
Environmental
Operating Temperature 32°F ~ 113°F (0°C ~ 45°C)
10% ~ 90%, non-condensing
Storage Temperature -4°F to ~ 158°F (-20°C ~ +70°C)
10% ~ 90%, non-condensing
Maximum BTU 13.64 BTU/hr
Dimensions & Weight
Rack Units/Wall Box <1U
Height 18mm/0.71in
Width 167.2mm/6.59in
Depth 69.7mm/2.75in
Weight 0.32kg/0.7lbs
Regulatory
Safety and Emission CE | FCC
